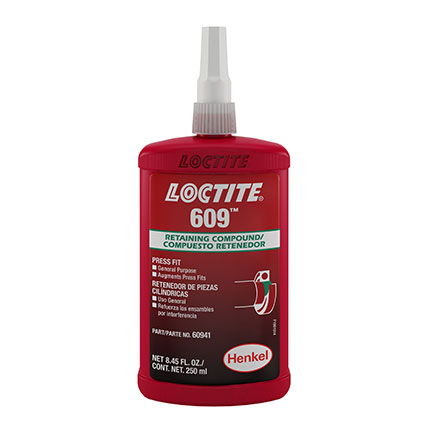

Henkel Loctite 609 Retaining Compound Green 250 mL Bottle

Part number: 135513
Henkel Loctite 609 Retaining Compound Green 250 mL Bottle

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

Henkel Loctite 609 Retaining Compound is a low viscosity, rapid curing anaerobic adhesive for bonding cylindrical fitting parts. It prevents loosening and leakage from shock and vibration. This product complies to MIL-R-46082. 250 mL Bottle.

Henkel Loctite 609 Retaining Compound is a low viscosity, rapid curing anaerobic adhesive for bonding cylindrical fitting parts. It prevents loosening and leakage from shock and vibration. This product complies to MIL-R-46082. 250 mL Bottle.
Typical Use: Used to bond cylindrical fitting parts. Typical applications include rotor to shafts in fractional and sub fractional horsepower motors. Locks bushings and sleeves in housings on shafts.
Chemical Composition: Methacrylate ester
Color: Green
Components: 1 part
Cure System: Anaerobic
Cure Time: Up to 72h depending on the substrate used, the bondline gap, and the temperature.
Elongation: <2% @ break
Flash Point: >93.3 °C
Key Specifications: Mil-R-46082B
Shear Strength: >= 1,490 @ 22 °C
Specific Gravity: 1.1 @ 25 °C
Thermal Conductivity: 0.1 W/mK
Viscosity: 110 to 140

If you require manufacturer certification, please request a quote.
