Part number: 135512
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

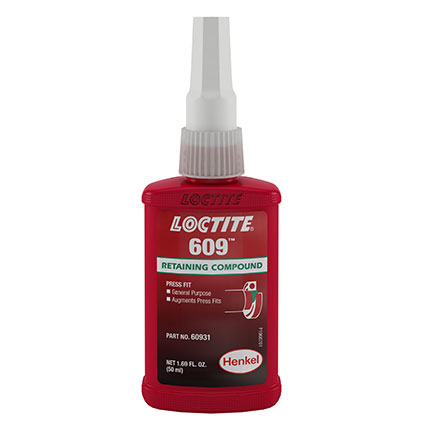

Henkel Loctite 609 Retaining Compound is a low viscosity, rapid curing anaerobic adhesive for bonding cylindrical fitting parts. It prevents loosening and leakage from shock and vibration. This product complies to MIL-R-46082. 50 mL Bottle.
| Typical Use: | Used to bond cylindrical fitting parts. Typical applications include rotor to shafts in fractional and sub fractional horsepower motors. Locks bushings and sleeves in housings on shafts. |
| Chemical Composition: | Methacrylate ester |
| Color: | Green |
| Components: | 1 part |
| Cure System: | Anaerobic |
| Cure Time: | Up to 72h depending on the substrate used, the bondline gap, and the temperature. |
| Elongation: | <2% @ break |
| Flash Point: | >93.3 °C |
| Key Specifications: | Mil-R-46082B If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor. |
| Shear Strength: | >= 1,490 @ 22 °C |
| Specific Gravity: | 1.1 @ 25 °C |
| Thermal Conductivity: | 0.1 W/mK |
| Viscosity: | 110 to 140 |
