Part number: HL138 50ML BOTTLE
Manufacturer SKU: AA001380050B0101
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

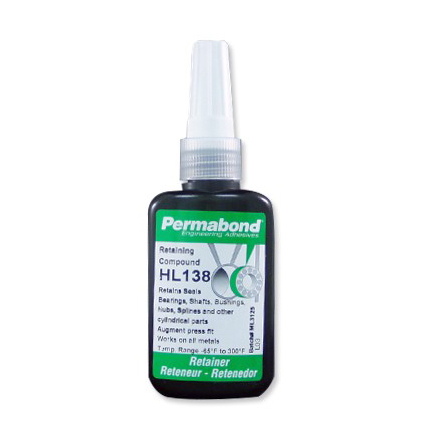

Permabond HL138 Retaining Compound Anaerobic Adhesive is a one component, fast curing liquid that is used to bond and retain locking parts. It cures quickly on metal parts where oxygen is excluded. It offers good shear strength, environment and temperature resistance. 50 mL Bottle.
| Typical Use: | Used to eliminate wear, erosion, and pitting associated with movement and to prevent corrosion. Used on shaft - hub assemblies to eliminate press fit and allow less expensive clearance fit. |
| Chemical Composition: | Methylacrylates |
| Color: | Green |
| Components: | 1 part |
| Cure System: | Anaerobic |
| Cure Time: | Full strength: 3h |
| Dielectric Strength: | 11 MV/m |
| Flash Point: | >110 °C |
| Gap Filling: | 0.127 mm |
| Key Specifications: | MIL-R-46082B Type I, ASTM D5363 AN0411 |
| Service Temperature: | 150 °C |
| Shear Strength: | 2,300 |
| Specific Gravity: | 1.09 |
| Tack Free Time: | 10min |
| Thermal Conductivity: | 0.2 W/mK |
| Viscosity: | 150 |
-
