Part number: 45 CLR 1LB RESIN ONLY
Manufacturer SKU: 1188169
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

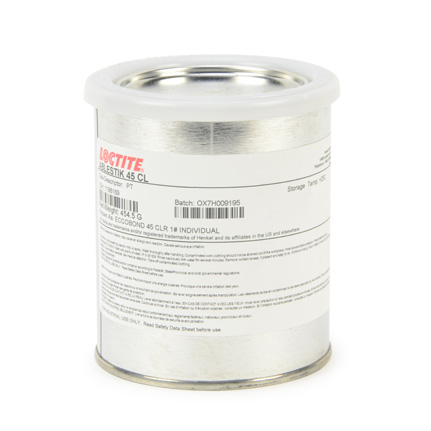

Henkel Loctite Ablestik 45 Clear, formerly Emerson and Cuming ECCOBOND, is a two component, heat curing, unfilled, epoxy adhesive system that is used for general purpose, assembly applications. It offers controlled flexibility, non-conductive properties, and is easy to use. 1 lb Can.
| Typical Use: | Used as a general purpose adhesive and is particularly useful when bonding dissimilar substrates such as metal to plastic. |
| Brand: | Ablestik |
| Chemical Composition: | Epoxy |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 16 to 24h @ 25 °C; 4 to 6h @ 45 °C; 2 to 4h @ 65 °C; 15 to 30min @ 105 °C |
| Dielectric Strength: | 14 kV/mm |
| Flash Point: | >200 °C |
| Hardness: | Rigid: 80 D; Semi-rigid: 60 to 70 D, Flexible: 60 D |
| Mix Ratio: | Rigid: 100:50 by weight; Semi-rigid: 100:100 by weight; Flexible: 100:150 by weight |
| Service Temperature: | Rigid: -40 to 90 °C; Semi-rigid: -55 to 80 °C; Flexible: -55 to 65 °C |
| Shear Strength: | Rigid: 2,500 @ 25 °C; Semi-rigid: 1,900 @ 25 °C; Flexible: 600 @ 25 °C |
| Specific Gravity: | Rigid: 1.34; Semi-rigid: 1.24; Flexible: 1.18 |
| Thermal Conductivity: | 0.35 W/mK |
| Viscosity: | Rigid: 37,000; Semi-rigid: 37,000; Flexible: 36,000 |
| Volume Resistivity: | Rigid: 1 x 10^13 ohm-cm; Semi-rigid: 1 x 10^13 ohm-cm; Flexible: 1 x 10^10 ohm-cm |
| Working Time: | Rigid: 120min @ 25 °C; Semi-rigid: 140min @ 25 °C; Flexible: 160min @ 25 °C |
-
-
