Part number: 56C-CAT 9 140.5 GRAM KIT
Manufacturer SKU: 1586134
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

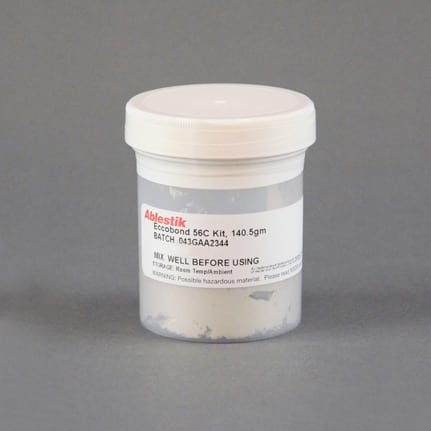

Henkel Loctite Ablestik 56C Silver, formerly Emerson and Cuming ECCOBOND, is two component, heat curing, epoxy adhesive resin that is used to replace hot soldering for electrical connections. It offers high strength bonds, non-flowing properties, long pot life, high thermal conductivity, chemical resistant, and is electrically conductive. The 9 Catalyst Amber 1 oz. is included at no charge. 113 g Jar.
| Typical Use: | Electrical connections where hot temperatures are not suitable. |
| Brand: | Ablestik |
| Chemical Composition: | Epoxy |
| Color: | Silver |
| Components: | 2 part |
| Cure System: | Heat |
| Cure Time: | Catalyst 11: 8h @ 80 °C, 2h @ 100 °C, 1h @ 120 °C |
| Flash Point: | >93.3 °C |
| Mix Ratio: | Catalyst 11: 100:3.5 by weight |
| Service Temperature: | -55 to 155 °C |
| Shear Strength: | Catalyst 11: 800 @ 25 °C |
| Specific Gravity: | Resin: 3.5; Catalyst 11: 3.3 |
| Thermal Conductivity: | Catalyst 11: 3 W/mK |
| Viscosity: | Catalyst 11: 35 to 60 @ 65 °C |
| Volume Resistivity: | Catalyst 11: 0.0002 ohm-cm @ 25 °C |
| Working Time: | Catalyst 11: >4h @ 25 °C |
-
-
-
-
