Part number: 237129
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

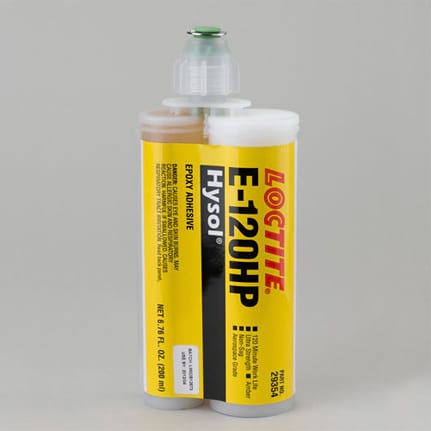

Henkel Loctite EA E-120HP is a high-viscosity, non-sag aerospace grade epoxy adhesive. Once fully cured it offers superior thermal shock resistance, excellent mechanical and electrical properties, and is able to withstand exposure to a wide variety of solvents and chemicals. 200 mL Cartridge.
| Typical Use: | Designed for bonding nose cones in aerospace applications. Also suitable for low stress, general industrial applications which require high impact and high peel strength. Bonds dissimilar materials including aluminum, steel, and other metals. |
| Chemical Composition: | Resin: Epoxy; Hardener: Polyamide |
| Color: | Amber-Beige |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 6 to 24h @ 25 °C |
| Dielectric Strength: | 25 kV/mm |
| Elongation: | 10% |
| Flash Point: | Resin: 96.1 °C; Hardener: > 93 °C |
| Hardness: | 76 to 90 D |
| Mix Ratio: | 2:1 by volume; 100:46 by weight |
| Specific Gravity: | 1.1 @ 25 °C |
| Tack Free Time: | 140min |
| Tensile Strength: | 5,900 psi |
| Viscosity: | Resin: 41,000 to 61,000; Hardener: 2,000 to 4,000 |
| Working Time: | 120min |
-
Part #: EAD200MS-11/21 -
Part #: EAD200PS-11/21 -
-
