Part number: 237107
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

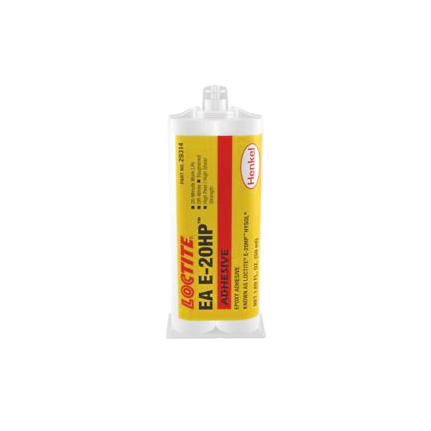

Henkel Loctite EA E-20HP is a high strength, fast setting, industrial grade epoxy adhesive. When cured it is resistant to a wide range of chemicals and solvents, and acts as an excellent electrical insulator. 50 mL Cartridge.
| Typical Use: | Used for general purpose industrial assemblies with bonds to a wide variety of plastics and metals. |
| Chemical Composition: | Resin: Epoxy; Hardener: Amine |
| Color: | Off-White |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 3 to 6h @ room temperature |
| Dielectric Strength: | 500 V/mil @ 25 °C |
| Elongation: | 8% @ 25 °C |
| Flash Point: | Resin: 96.11 °C; Hardener: >93.4 °C |
| Hardness: | 80 D @ 25 °C |
| Mix Ratio: | 2:1 by volume; 100:55 by weight |
| Shear Strength: | Up to 4,690 @ 22 °C depending on substrate used. |
| Specific Gravity: | Resin: 1.1; Hardener: 1.15 |
| Tack Free Time: | 40min |
| Tensile Strength: | 5,700 psi @ 25 °C |
| Viscosity: | Base: 65,000; Hardener: 7,000 |
| Working Time: | 20min |
