Part number: EA9396 GL KIT
Manufacturer SKU: 1342390
Due to raw material shortages, this product is unavailable to purchase on the web. Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

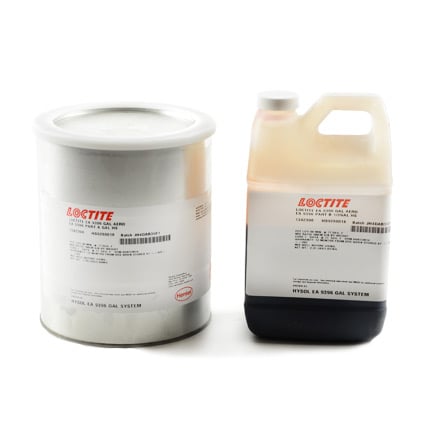

Henkel Loctite EA 9396 AERO is a two component, low viscosity, room temperature curing epoxy paste adhesive that possesses excellent strength properties at temperatures from -55 to 177 °C. 1 gal Kit.
| Typical Use: | Used to bond substrates. |
| Chemical Composition: | Epoxy |
| Color: | Green to Dark Purple |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 3 to 5d @ 25 °C; 1h @ 66 °C |
| Elongation: | 3.4% |
| Flash Point: | Part A: >93 °C; Part B: >93 °C |
| Hardness: | 80 D |
| Mix Ratio: | 100:30 by weight |
| Peel Strength: | 20 to 25 lb/in |
| Service Temperature: | Up to 177 °C |
| Tensile Strength: | 1,200 to 3,500 psi |
| Viscosity: | 3,500 |
| Volume Resistivity: | 2.14 x 10^15 ohm-cm |
| Working Time: | 75 to 90min |
