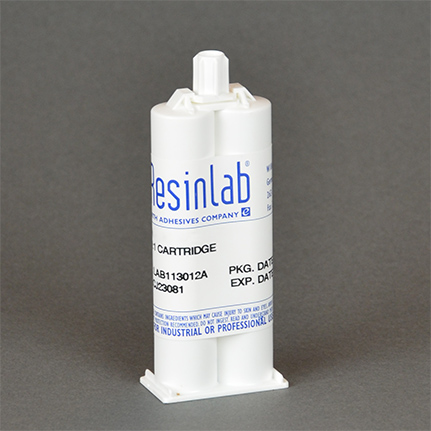

ResinLab EP1026HP Epoxy Adhesive Off-White 50 mL Cartridge

Part number: EP1026HP 50ML
ResinLab EP1026HP Epoxy Adhesive Off-White 50 mL Cartridge

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

ResinLab EP1026HP Off-White is a two component, room and elevated temperature curing, high performance adhesive that is used for bonding plastics, metal, and ceramics. It is semi-rigid, free flowing, and resistant to salt spray, water, and most organic and inorganic solvents. 50 mL Cartridge.

ResinLab EP1026HP Off-White is a two component, room and elevated temperature curing, high performance adhesive that is used for bonding plastics, metal, and ceramics. It is semi-rigid, free flowing, and resistant to salt spray, water, and most organic and inorganic solvents. 50 mL Cartridge.
Typical Use: Designed for high speed bonding of metals, ceramics, and most plastics.
Chemical Composition: Epoxy
Color: Off-White
Components: 2 part
Cure System: Heat
Cure Time: 1h @ 100 °C
Dielectric Strength: 440 V/mil
Elongation: 20% to 30% @ break
Flash Point: >93.3 °C
Hardness: 80 D
Mix Ratio: 1.04:1 by volume; 1:1 by weight
Peel Strength: 15 pli
Service Temperature: -40 to 130 °C
Shear Strength: 3,500
Specific Gravity: Mixed: 1.15
Tensile Strength: 3,500 psi
Thermal Conductivity: <0.2 W/mK
Viscosity: Mixed: 12,500
Volume Resistivity: 8 x 10^14 ohm-cm
