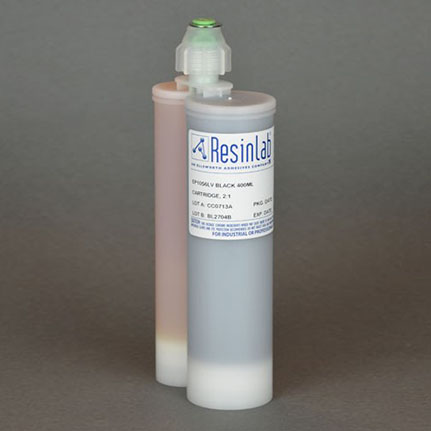

Part number: EP1056LV BLACK 400ML
For current pricing and to place an order please contact your Ellsworth Customer Service Representative.
ResinLab EP1056LV Black is a two component, room temperature and heat curing, urethane epoxy casting resin that is used for bonding PVC and metal. It is free flowing, self leveling, has good air release and wetting properties. It is resistant to most organic solvents and water. 400 mL Cartridge.
| Typical Use: | Potting applications utilizing PVC shells or wire insulation. |
| Chemical Composition: | Urethane modified epoxy |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 8 to 16h @ room temperature; 1h @ 65 °C; 15min @ 100 °C |
| Dielectric Strength: | 410 V/mil |
| Elongation: | 3% @ break |
| Flash Point: | Part A: >249 °C; Part B: >100 °C |
| Hardness: | 80 D |
| Mix Ratio: | 2.02:1 by volume; 2.54:1 by weight |
| Service Temperature: | -40 to 150 °C |
| Shear Strength: | 2,400 |
| Specific Gravity: | Mixed: 1.15 |
| Tensile Strength: | 5,700 psi |
| Thermal Conductivity: | <0.2 W/mK |
| Viscosity: | Mixed: 8,400 |
| Volume Resistivity: | 5.21 x 10^14 ohm-cm |
-
Part #: EAD400PS-11/21 -
-
-
-
