Part number: EP1238 50ML
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

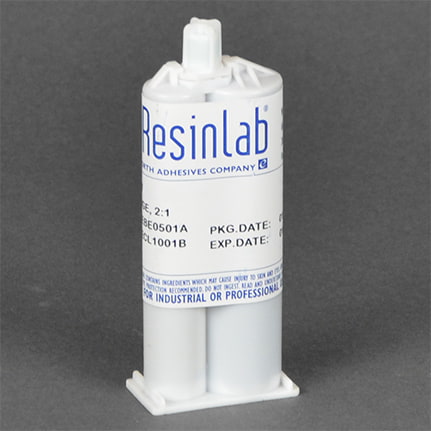

ResinLab EP1238 Off-White is a two component, room temperature and heat curing, epoxy/acrylic adhesive that is used for bonding plastics and metals. It offers controlled flow, good wetting, semi-rigid material, and resistance to salt solutions, water, vibrations, impact, organic and inorganic solvents. 50 mL Cartridge.
| Typical Use: | Designed for bonding metals and plastics. |
| Chemical Composition: | Acrylic/epoxy hybrid |
| Color: | Off-White |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ 25 °C; 2h @ 65 °C |
| Dielectric Strength: | 888 V/mil |
| Elongation: | 3% to 4% @ break |
| Flash Point: | Part A: 249 °C; Part B: >93 °C |
| Hardness: | 80 D |
| Mix Ratio: | 2:1 by volume; 100:47 by weight |
| Peel Strength: | 25 pli |
| Service Temperature: | -40 to 150 °C |
| Shear Strength: | 4,000 |
| Specific Gravity: | Mixed: 1.13 |
| Tensile Strength: | 8,500 psi |
| Thermal Conductivity: | 0.18 W/mK |
| Viscosity: | Mixed: 65,000 |
| Volume Resistivity: | 1.6 x 10^15 ohm-cm |
| Working Time: | 20min |
