Part number: EP1290 CLEAR 50ML
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

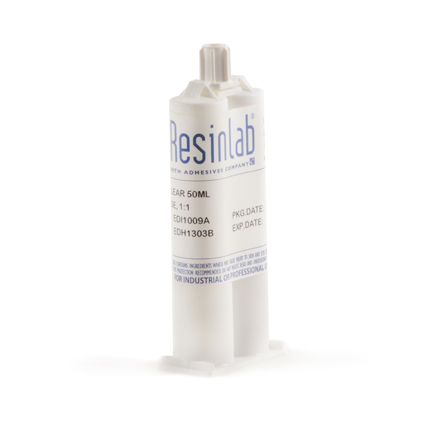

ResinLab EP1290 Clear is a two component, room temperature and heat curing, unfilled epoxy that is used for bonding plastics and metals. It is semi-flexible, free flowing, has good air release and self leveling. It is resistant to salt solutions, water, impact, vibrations, organic and inorganic solvents. 50 mL Cartridge.
| Typical Use: | Designed for bonding metals and plastics. |
| Chemical Composition: | Epoxy |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 16 to 24h @ room temperature; 2h @ 65 °C; 20min @ 100 °C |
| Dielectric Strength: | 850 V/mil |
| Elongation: | 40% to 50% @ break |
| Flash Point: | Part A: >249 °C; Part B: >93 °C |
| Hardness: | 60 D |
| Mix Ratio: | 1:1 by volume; 1.22:1 by weight |
| Service Temperature: | -40 to 150 °C |
| Shear Strength: | 2,500 |
| Specific Gravity: | Mixed: 1.08 |
| Tensile Strength: | 1,600 psi |
| Thermal Conductivity: | 0.14 W/mK |
| Viscosity: | Mixed: 30,000 |
| Volume Resistivity: | 5 x 10^12 ohm-cm |
| Working Time: | >2h |
