Part number: 3145 90ML GRY MIL-A-46146
Manufacturer SKU: 3138313
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

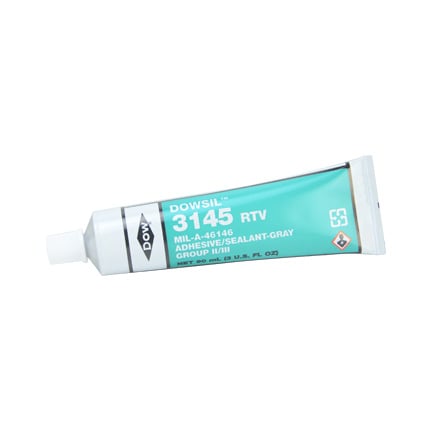

Dow DOWSIL™ 3145 RTV MIL-A-46146 Adhesive Sealant Gray is a one component, room temperature curing, silicone adhesive that is used for assembling print wire boards, yokes, adding mechanical stability, and sealing housings, modules, and electrical leads. It is non-flowing, adds thermal stability, high temperature stability, and has high elongation and tensile strength. 90 mL Tube.
| Typical Use: | Sealing openings in modules and housings; adding mechanical stability to individual components; assembly of components on PWBs; sealing in and around wires and electrical leads; yoke assembly. |
| Brand: | DOWSIL |
| Color: | Gray |
| Components: | 1 part |
| Cure System: | RTV |
| Cure Time: | 48h @ room temperature |
| Dielectric Strength: | 500 V/mil |
| Elongation: | 670% |
| Hardness: | 51 A |
| Key Specifications: | MIL-A-46146 Rev. B, Amend. 3 Group III, CERT |
| Service Temperature: | 50 to 200 °C |
| Shear Strength: | 1,900 |
| Specific Gravity: | 1.12 @ 25 °C |
| Tack Free Time: | 78min |
| Tensile Strength: | 1,035 psi |
| Viscosity: | Non-flow |
If you require manufacturer certification, please request a quote.
-
