Part number: 3165 FAST TACK RTV 21.9KG
Manufacturer SKU: 3111491
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

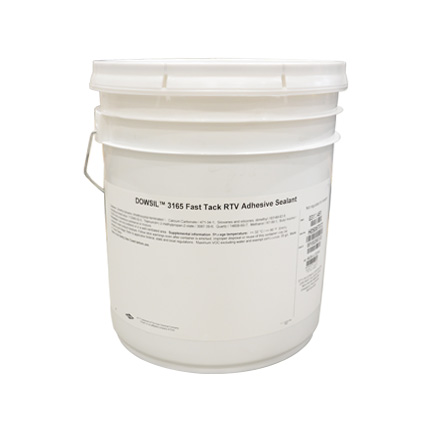

Dow DOWSIL™ 3165 Fast Tack RTV Adhesive Sealant Gray is a one component, room temperature curing, silicone adhesive that is used for assembling print wire boards, yokes, adding mechanical stability, and sealing housings, modules, and electrical leads. It is non-flowing, tack free, flame resistant, and has good green strength. 21.9 kg Pail.
| Typical Use: | Sealing openings in modules and housings; adding mechanical stability to individual components; assembly of components on PWBs; sealing in and around wires and electrical leads; yoke assembly. |
| Brand: | DOWSIL |
| Color: | Gray |
| Components: | 1 part |
| Cure System: | RTV |
| Cure Time: | 24h @ room temperature |
| Dielectric Strength: | 500 V/mil |
| Elongation: | 185% |
| Key Specifications: | UL 94 V-0 |
| Service Temperature: | -45 to 200 °C |
| Shear Strength: | 200 |
| Specific Gravity: | 1.35 @ 25 °C |
| Tack Free Time: | 5min |
| Tensile Strength: | 125 psi |
| Viscosity: | Non-flow |
| Volume Resistivity: | 2.4e + 15 ohm-cm |
-
