Part number: DP100 PLUS CLEAR 48.5ML
Manufacturer SKU: 7100148750
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

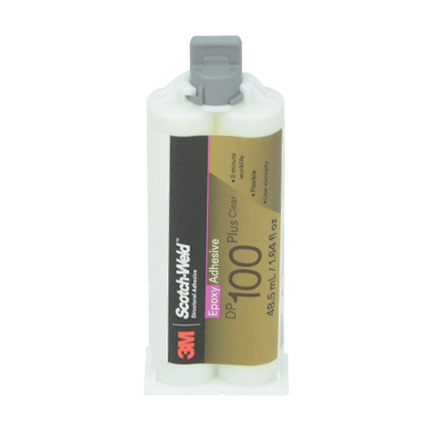

3M Scotch-Weld Epoxy Adhesive DP100 PLUS Clear is a two component, fast curing, epoxy based resin that offers flexibility and high shear and peel strength. 1:1 mix ratio by volume. 48.5 mL Duo-Pak Cartridge.
| Typical Use: | Formulated and packaged for use in the EPX Applicator. |
| Brand: | Scotch-Weld |
| Chemical Composition: | Epoxy/mercaptan |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 48h @ 23 °C |
| Dielectric Strength: | 710 V/mil |
| Elongation: | 75% |
| Flash Point: | Base: 115.5 °C; Accelerator: 115 °C |
| Hardness: | 65 to 70 D |
| Mix Ratio: | 1:1 by volume; 1:1 by weight |
| Peel Strength: | 1 to 15 piw depending on temperature. |
| Specific Gravity: | Base: 1.17; Accelerator: 1.15 |
| Tack Free Time: | 9 to 10min |
| Tensile Strength: | 1,850 psi |
| Thermal Conductivity: | 0.077 @ 43.3 °C |
| Viscosity: | Base: 4,000 to 11,000; Accelerator: 7,000 to 13,000 |
| Volume Resistivity: | 6.7 x 10^11 ohm-cm |
| Working Time: | 3 to 4min @ 23 °C |
-
