Part number: DP190 CLEAR 48.5ML
Manufacturer SKU: 7100148752
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

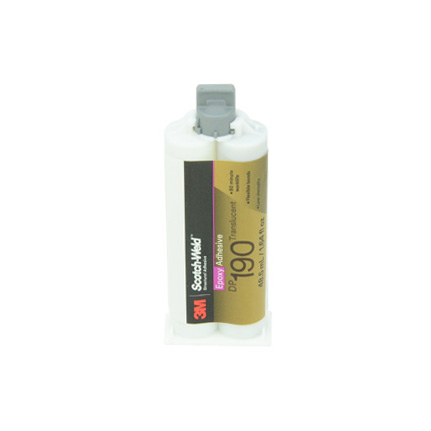

3M Scotch-Weld Epoxy Adhesive DP190 Clear is a two component, fast curing, epoxy based resin that offers flexibility, 90 minute handling time, high shear and peel strength. 1:1 mix ratio by volume. 48.5 mL Duo-Pak Cartridge.
| Typical Use: | Can be used to bond rubber, metal, wood, most plastics, and masonry products. |
| Brand: | Scotch-Weld |
| Chemical Composition: | Epoxy/amine |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 14d |
| Dielectric Strength: | 875 V/mil |
| Elongation: | 120% |
| Flash Point: | 93.3 °C |
| Hardness: | 35 D |
| Mix Ratio: | 1:1 by volume; 1.15:1 by weight |
| Peel Strength: | 20 piw @ 21 °C |
| Shear Strength: | 90 to 1,800 |
| Specific Gravity: | Part A: 1.03; Part B: 1.17 |
| Tack Free Time: | ~4h |
| Tensile Strength: | 2,750 psi |
| Thermal Conductivity: | 0.079 @ 43.3 °C |
| Viscosity: | Base: 2,000 to 8,000; Accelerator: 7,000 to 15,000 |
| Volume Resistivity: | 7.5 x 10^10 ohm-cm |
| Working Time: | 60 to 80min @ 23 °C |
-
