Part number: DP420 OFF-WHITE 50ML
Manufacturer SKU: 7100148736
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

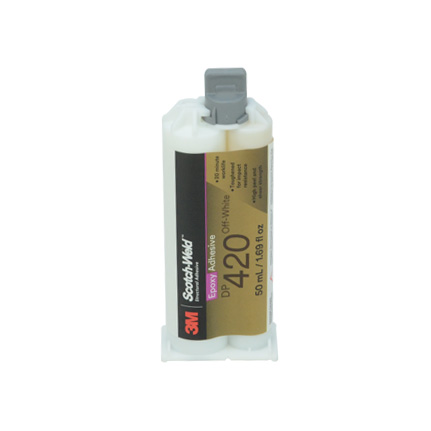

3M Scotch-Weld Epoxy Adhesive DP420 Off-White is a two component, epoxy-based, structural adhesive that offers a controlled flow, durability, easy mixing, high shear and peel strength. It can be used to replace mechanical fasteners, screws, rivets and spot welds. 50 mL Duo-Pak Cartridge.
| Typical Use: | High performance adhesive for bonding a wide variety of substrates with outstanding levels of reliability and durability. |
| Brand: | Scotch-Weld |
| Chemical Composition: | Base: Epoxy; Accelerator: Amine |
| Color: | Off-White |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 24h @ 22 °C |
| Dielectric Strength: | 690 V/mil |
| Flash Point: | Base: 248.8 °C; Accelerator: 171.1 °C |
| Hardness: | 75 to 80 D |
| Mix Ratio: | 2:1 by volume; 2:0.97 by weight |
| Peel Strength: | 3 to 50 depending on temperature |
| Shear Strength: | 4,500 |
| Specific Gravity: | Part A: 1.12; Part B: 1.14 |
| Thermal Conductivity: | 0.104 @ 45 °C |
| Viscosity: | Base: 20,000 to 50,000; Accelerator: 8,000 to 14,000 |
| Volume Resistivity: | 1.3 x 10^14 ohm-cm |
| Working Time: | 15 to 30min |
-
