Part number: 9001-E-V3.5 10ML MR SYR
Manufacturer SKU: 9001-E-V3.5/10SYMR
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

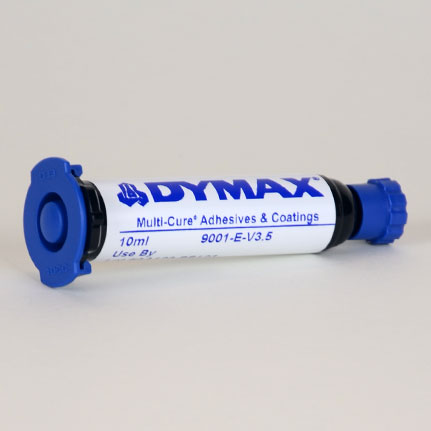

DYMAX 9001-E-V3 Series Encapsulant Clear is a one component, UV light and heat curing, acrylated urethane that is used for bonding electronic devices, print circuit boards, glass, multi-chip modules, chip-on-flex, and chip-on-board applications. It offers flexibility, good electrical properties, and resistance to thermal cycle and moisture. 10 mL MR Syringe.
| Typical Use: | Multi-Cure 9001-E-V3 series encapsulants display excellent adhesion to PC boards and electronic components and are especially well suited for chip on board, chip on flex, and multi-chip modules. |
| Brand: | Multi-Cure |
| Chemical Composition: | Acrylated urethane |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | UV |
| Cure Time: | Actual cure time typically is 3 to 5 times fixture time. |
| Dielectric Strength: | 500 kV/mm |
| Elongation: | 150% @ break |
| Flash Point: | 101 °C |
| Hardness: | 45 D |
| Service Temperature: | -54 to 150 °C |
| Tensile Strength: | 750 psi @ break |
| Viscosity: | 10,000 to 24,000 |
| Volume Resistivity: | 555 x 10^12 ohm-cm |
