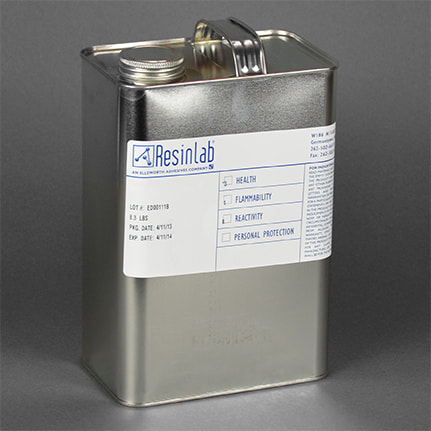

ResinLab EP1121 Epoxy Encapsulant Part A Black 1 gal Pail

Part number: EP1121 BLACK A GL Manufacturer SKU: EP1121 BLACK A GL
ResinLab EP1121 Epoxy Encapsulant Part A Black 1 gal Pail

Due to raw material shortages, this product is unavailable to purchase on the web. Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 877-454-9224.

Email Us

Email Us
Email us for product availability.



ResinLab EP1121 Black is a two component, room temperature curing, unfilled epoxy encapsulant that is used for medium to large castings and penetrating circuitry. It has flexibility, low viscosity, good wicking, good air release, excellent thermal shock and cycling properties. It is resistant to most organic solvents and water. Part A, 1 gal Pail.

ResinLab EP1121 Black is a two component, room temperature curing, unfilled epoxy encapsulant that is used for medium to large castings and penetrating circuitry. It has flexibility, low viscosity, good wicking, good air release, excellent thermal shock and cycling properties. It is resistant to most organic solvents and water. Part A, 1 gal Pail.
Typical Use: Designed for small to medium sized castings requiring good thermal shock and low stress.
Chemical Composition: Epoxy
Color: Clear
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 24 to 48h @ 25 °C; 2h @ 65 °C; 30min @ 100 °C
Dielectric Strength: 410 V/mil
Elongation: 80%
Flash Point: >93 °C
Hardness: 65 D
Mix Ratio: 1:1 by volume; 1.15:1 by weight
Service Temperature: -40 to 150 °C
Shear Strength: 1,200
Specific Gravity: Part A: 1.12; Part B: 0.97; Mixed: 1.05
Tensile Strength: 1,500 psi
Thermal Conductivity: 0.1 W/mK
Viscosity: Part A: 2,500; Part B: 4,200; Mixed: 3,800
Volume Resistivity: 8 x 10^14 ohm-cm
