Part number: EP1218 - B GL
Manufacturer SKU: EP1218 CLEAR B GL
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

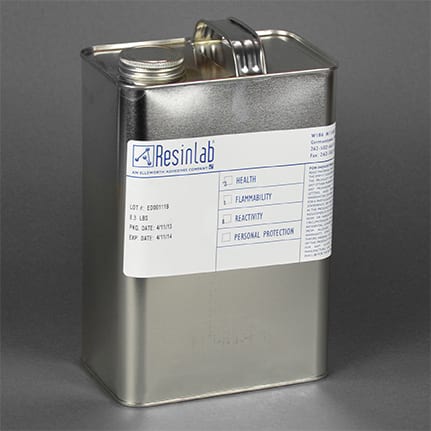

ResinLab EP1218 Clear is a two component, room temperature curing, unfilled epoxy encapsulant that is used for medium to large castings. It is electronic grade, has very low viscosity, flexible, gives good air release, and has good wicking properties. It is resistant to bases, acids, water, and most organic solvents. Part B, 1 gal Pail.
| Typical Use: | Designed for medium to large sized castings. |
| Chemical Composition: | Epoxy |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 2d @ 25 °C; 7h @ 50 °C; 6h @ 65 °C; 30m @ 100 °C |
| Dielectric Strength: | 420 V/mil |
| Elongation: | 80% |
| Flash Point: | >121 °C |
| Hardness: | 85 to 90 A |
| Mix Ratio: | 1:1 by volume; 1.12:1 by weight |
| Service Temperature: | -40 to 121 °C |
| Specific Gravity: | Part B: 0.98; Mixed: 1.04 |
| Tensile Strength: | 400 psi |
| Viscosity: | Part B: 400; Mixed: 450 |
| Working Time: | >4h |
