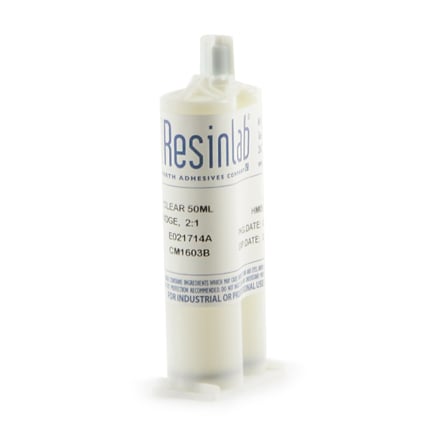

ResinLab EP691 Epoxy Encapsulant Clear 50 mL Cartridge

Part number: EP691 CLEAR 50ML
ResinLab EP691 Epoxy Encapsulant Clear 50 mL Cartridge

For current pricing and to place an order please contact your Ellsworth Customer Service Representative.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

ResinLab EP691 Clear is a two component, room temperature or heat curing, unfilled epoxy encapsulant that is used for medium castings, bonding with most materials, and filling voids. It is electronic grade, semi-rigid, free flowing, and has good air release and wetting properties. It is resistant to bases, acids, water, and most organic solvents. 50 mL Cartridge.

ResinLab EP691 Clear is a two component, room temperature or heat curing, unfilled epoxy encapsulant that is used for medium castings, bonding with most materials, and filling voids. It is electronic grade, semi-rigid, free flowing, and has good air release and wetting properties. It is resistant to bases, acids, water, and most organic solvents. 50 mL Cartridge.
Typical Use: Designed for medium sized castings requiring good clarity.
Chemical Composition: Epoxy
Color: Clear
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 24h @ room temperature; 1h @ 65 °C; 20min @ 100 °C
Dielectric Strength: 410 V/mil
Elongation: 4% to 9% @ break
Flash Point: Part A: 252 °C; Part B: >260 °C
Hardness: 80 D
Mix Ratio: 2:1 by volume; 100:45 by weight
Service Temperature: -40 to 121 °C
Specific Gravity: Mixed: 1.11
Tensile Strength: 8,500 psi
Thermal Conductivity: 0.14 W/mK
Viscosity: Mixed: 9,000
Volume Resistivity: 8 x 10^14 ohm-cm
Working Time: >2h
