Part number: EN-8 PART B QT
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

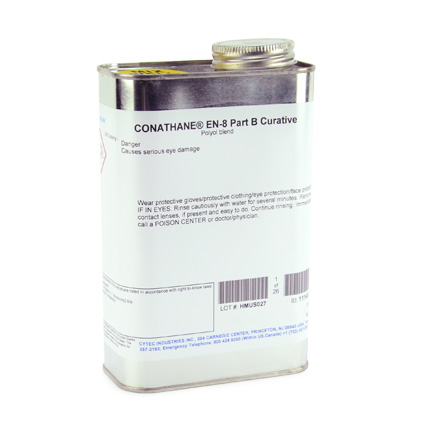

ELANTAS PDG CONATHANE EN-8 Polyurethane Resin System is a two component, non-MBOCA system that is used for molding and potting electrical assemblies that are exposed to extreme thermal changes. It is typically used for print circuit boards, electrical cables, connectors, strain sensitive devices, and wire wound devices. It offers good dielectric properties, hydrolytic stability, low viscosity, high elongation, and resistance to fungus and thermal shock. Part B, 1 qt Can.
| Typical Use: | Molding and potting compounds for electrical cables, connectors, modules, wire wound devices, strain sensitive devices, as well as 100% solids coatings for printed circuitry that will be exposed to severe environmental extremes. |
| Brand: | CONATHANE |
| Chemical Composition: | Polyurethane |
| Color: | Amber |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 5 to 7d @ 25 °C; 4h @ 60 °C; 2h @ 80 °C; 1h @ 100 °C |
| Dielectric Strength: | 785 V/m @ 25 °C |
| Elongation: | >400% |
| Flash Point: | >93 °C |
| Hardness: | 90 A |
| Mix Ratio: | 100:17.5 by weight |
| Peel Strength: | >20 piw |
| Specific Gravity: | Part B: 0.96; Mixed: 1.01 @ 25 °C |
| Tensile Strength: | >2,000 psi |
| Viscosity: | Part B: 1,000 @ 25 °C; Mixed: 5,500 @ 25 °C |
| Volume Resistivity: | >4.3 x 10^15 ohm-cm @ 25 °C |
| Working Time: | 15min |
-
