Part number: UR3001HP2 CLEAR 50ML
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

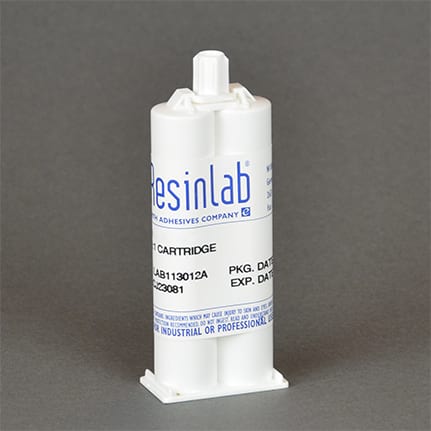

ResinLab UR3001HP2 Urethane Encapsulant Clear is a two component, room temperature curing, unfilled, urethane encapsulating system that is used for bonding plastics, metals, and assemblies. It is very flexible, low viscosity, good penetration, and moisture resistance. Pot life: 3 minutes. 50 mL Cartridge.
| Typical Use: | This product was formulated to a convenient mixing ratio of 1:1 by volume. It is well suited to automated meter mix operations. |
| Chemical Composition: | Urethane |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ 25 °C; 1h @ 85 °C |
| Dielectric Strength: | 371 V/mil |
| Elongation: | 50% |
| Flash Point: | >200 °C |
| Hardness: | 60 OO |
| Mix Ratio: | 1:1 by volume; 1:1.07 by weight |
| Specific Gravity: | Part A: 0.97; Part B: 0.91; Mixed: 0.94 |
| Viscosity: | Part A: 200; Part B: 4,500; Mixed: 2,100 |
| Volume Resistivity: | 3.8 x 10^13 ohm-cm |
