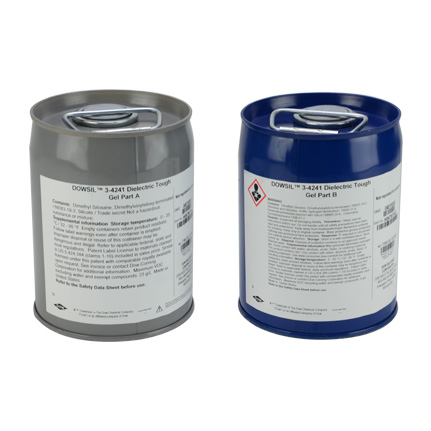

Dow DOWSIL™ 3-4241 Dielectric Tough Gel Green 7.2 kg Kit

Part number: 3-4241 DIELECT TGH 7.2KG Manufacturer SKU: 4015093
Dow DOWSIL™ 3-4241 Dielectric Tough Gel Green 7.2 kg Kit

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

Dow DOWSIL™ 3-4241 Dielectric Tough Gel Clear-Green is a two component, heat curing, silicone gel that is used for electrical insulation and protecting electrical components from contaminants, moisture, and stress. It is durable, fast curing, requires no primer, flame resistant, long working times, and has good mechanical strength. 1:1 mix ratio. 7.2 kg Kit.

<p>Dow DOWSIL™ 3-4241 Dielectric Tough Gel Clear-Green is a two component, heat curing, silicone gel that is used for electrical insulation and protecting electrical components from contaminants, moisture, and stress. It is durable, fast curing, requires no primer, flame resistant, long working times, and has good mechanical strength. 1:1 mix ratio. 7.2 kg Kit.</p>
Typical Use: For applications that require gels with added strength. Dow DOWSIL™ 3-4241 has enhanced chemical adhesion, but cures slightly harder than standard gels.
Brand: DOWSIL
Color: Green
Components: 2 part
Cure System: Room Temperature/Heat
Cure Time: 8 to 11h @ room temperature; 2min @ 125 °C
Dielectric Strength: 450 V/mil
Mix Ratio: 1:1
Specific Gravity: 0.97 to 0.98
Viscosity: 400
Volume Resistivity: 3.3e + 14 ohm-cm
Working Time: >60min
