Part number: 160 SIL ELAST PT A 226.7KG
Manufacturer SKU: 2417600
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

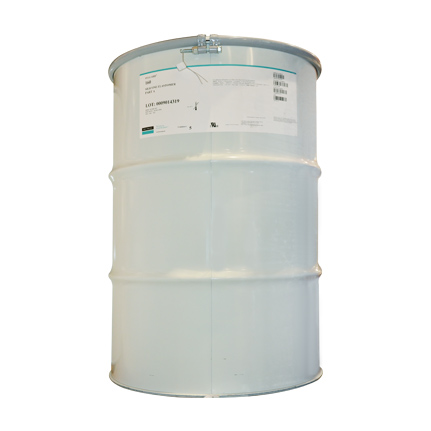

Dow SYLGARD™ 160 Silicone Elastomer is a two component, room temperature or heat curing encapsulant that is used for general potting applications of power supplies. It has good flowability, moderate thermal conductivity, and flame resistance. 1:1 mix ratio. Part A, 226.7 kg Pail.
| Typical Use: | General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays. |
| Brand: | SYLGARD |
| Color: | Charcoal Gray |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ 25 °C; 4min @ 100 °C |
| Dielectric Strength: | 19 kV/mm |
| Flash Point: | >101.1 °C |
| Hardness: | 56 A |
| Key Specifications: | UL 94 V-0 |
| Mix Ratio: | 1:1 by volume; 1:1 by weight |
| Service Temperature: | -45 to 200 °C |
| Specific Gravity: | Part A: 1.61 @ 25 °C; Mixed: 1.57 |
| Thermal Conductivity: | 0.62 W/mK |
| Viscosity: | Part A: 8,100; Mixed: 8,775 |
| Volume Resistivity: | 5.6 x 10^14 ohm-cm |
| Working Time: | 25min @ room temperature |
-
