Part number: 170 FAST CURE A 22.6KG
Manufacturer SKU: 3144712
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

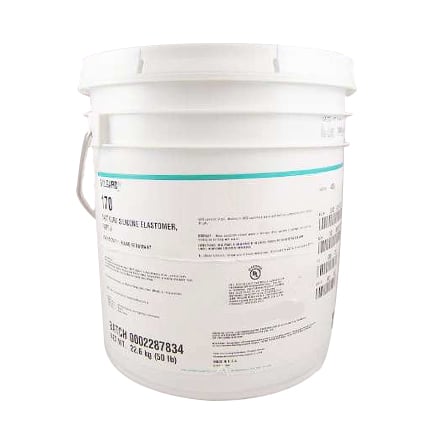

Dow SYLGARD™ 170 Fast Cure Silicone Elastomer is a two component, room temperature and heat curing, encapsulant that is used as a protective coating for electrical applications such as power supplies, transformers, sensors, amplifiers, and connectors. It provides good flowability, moderate thermal conductivity, low viscosity, and flame resistance. 1:1 mix ratio. Part A, 22.6 kg Pail.
| Typical Use: | General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays. |
| Brand: | SYLGARD |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Room Temperature |
| Cure Time: | 10min @ 25 °C |
| Dielectric Strength: | 14 kV/mm |
| Flash Point: | >101.1 °C |
| Hardness: | 45 A |
| Key Specifications: | UL 94 V-0 |
| Mix Ratio: | 1:1 by volume; 1:1 by weight |
| Service Temperature: | -45 to 200 °C |
| Specific Gravity: | Part A: 1.33 @ 25 °C; Mixed: 1.38 |
| Thermal Conductivity: | 0.4 W/mK |
| Viscosity: | Part A: 5,000; Mixed: 2,850 |
| Volume Resistivity: | 2.4 x 10^15 ohm-cm |
| Working Time: | 4min @ room temperature |
-
