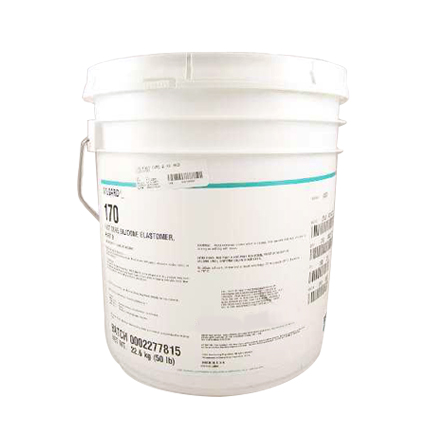

Dow SYLGARD™ 170 Fast Cure Silicone Encapsulant Part B Off-White 22.6 kg Pail

Part number: 170 FAST CURE B 22.6KG Manufacturer SKU: 3144721
Dow SYLGARD™ 170 Fast Cure Silicone Encapsulant Part B Off-White 22.6 kg Pail

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

Dow SYLGARD™ 170 Fast Cure Silicone Elastomer is a two component, room temperature and heat curing, encapsulant that is used as a protective coating for electrical applications such as power supplies, transformers, sensors, amplifiers, and connectors. It provides good flowability, moderate thermal conductivity, low viscosity, and flame resistance. 1:1 mix ratio. Part B, 22.6 kg Pail.

<p>Dow SYLGARD™ 170 Fast Cure Silicone Elastomer is a two component, room temperature and heat curing, encapsulant that is used as a protective coating for electrical applications such as power supplies, transformers, sensors, amplifiers, and connectors. It provides good flowability, moderate thermal conductivity, low viscosity, and flame resistance. 1:1 mix ratio. Part B, 22.6 kg Pail.</p>
Typical Use: General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays.
Brand: SYLGARD
Color: Off-White
Components: 2 part
Cure System: Room Temperature
Cure Time: 10min @ 25 °C
Dielectric Strength: 14 kV/mm
Flash Point: >101.1 °C
Hardness: 45 A
Key Specifications: UL 94 V-0
Mix Ratio: 1:1 by volume; 1:1 by weight
Service Temperature: -45 to 200 °C
Specific Gravity: Part B: 1.33 @ 25 °C; Mixed: 1.38
Thermal Conductivity: 0.4 W/mK
Viscosity: Part B: 2,500; Mixed: 2,850
Volume Resistivity: 2.4 x 10^15 ohm-cm
Working Time: 4min @ room temperature
