Part number: 170 SIL ELAST PT B 22.6KG
Manufacturer SKU: 1706977
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

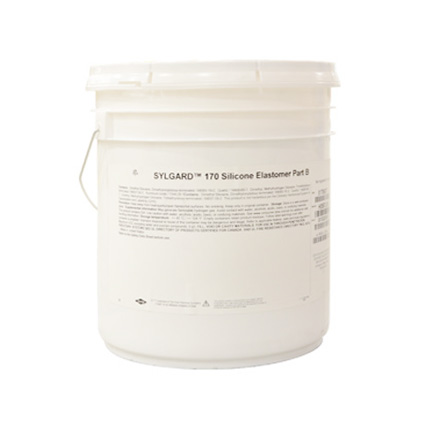

Dow SYLGARD™ 170 Silicone Elastomer is a two component, room temperature and heat curing, encapsulant that is used as a protective coating for electrical applications such as power supplies, transformers, sensors, amplifiers, and connectors. It provides good flowability, moderate thermal conductivity, low viscosity, long working times, and flame resistance. 1:1 mix ratio. Part B, 22.6 kg Pail.
| Typical Use: | General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays. |
| Brand: | SYLGARD |
| Color: | Off-White |
| Components: | 2 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ 25 °C; 25min @ 70 °C; 15min @ 85 °C; 10min @ 100 °C |
| Dielectric Strength: | 19 kV/mm |
| Flash Point: | >101.1 °C |
| Hardness: | 40 A |
| Key Specifications: | MIL-PRF-23586F (Grade B2), UL 94 V-0 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor. |
| Mix Ratio: | 1:1 |
| Service Temperature: | -45 to 200 °C |
| Specific Gravity: | Part B: 1.33 @ 25 °C; Mixed: 1.38 |
| Thermal Conductivity: | 0.39 W/mK |
| Viscosity: | Part B: 2,000; Mixed: 3,400 |
| Volume Resistivity: | 2.3 x 10^13 ohm-cm |
| Working Time: | 15min @ room temperature |
-
