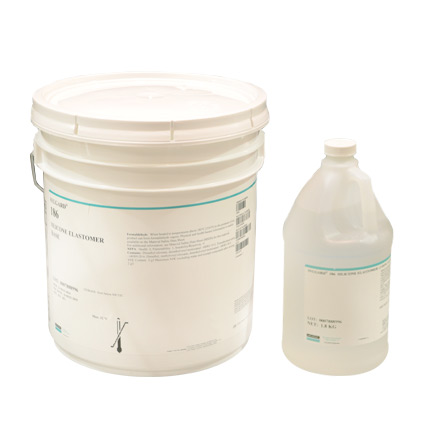

Dow SYLGARD™ 186 Silicone Elastomer Clear 19.9 kg Kit

Part number: 186 ELAST PLASTIC 19.9KG Manufacturer SKU: 3150305

Dow SYLGARD™ 186 Silicone Elastomer Clear 19.9 kg Kit

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us
Contact customer service at 888-458-0554.

Email Us
Email our quotes team.

Request a Quote
Submit a quote request and a sales representative will contact you.

Dow SYLGARD™ 186 Silicone Elastomer Clear is a two component, room temperature and heat curing, encapsulant that is used as a protective coating for electrical applications such as power supplies, transformers, sensors, amplifiers, and connectors. It provides flexibility, high tear strength, and high viscosity. 10:1 mix ratio. 19.9 kg Kit.

Product Details

Typical Use:	General potting applications: power supplies, connectors, sensors, industrial controls, transformers, amplifiers, high voltage resistor packs, relays; adhesive/encapsulant for solar cells; adhesive handling beam lead integrated circuits during processing.
Brand:	SYLGARD
Color:	Clear
Components:	2 part
Cure System:	Heat
Cure Time:	30min @ 100 °C
Dielectric Strength:	450 V/mil
Flash Point:	101 °C
Hardness:	24 A
Key Specifications:	MIL-I-81550C, UL 94 V-0 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor.
Mix Ratio:	10:1
Service Temperature:	-45 to 200 °C
Specific Gravity:	1.12
Thermal Conductivity:	0.21 W/mK
Viscosity:	66,700
Volume Resistivity:	5 x 10^15 ohm-cm
Working Time:	4h @ room temperature
