Part number: 567 PR/LESS PT B 20.4KG
Manufacturer SKU: 2768895
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

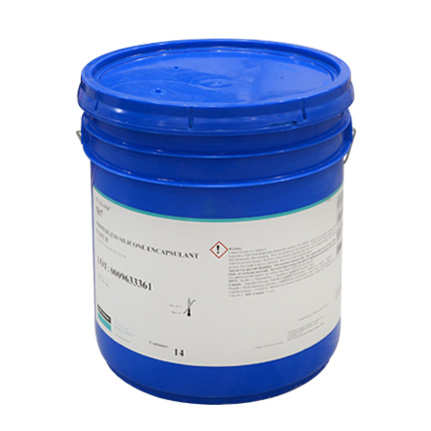

Dow SYLGARD™ 567 Primerless Silicone Encapsulant Black is a two component, heat curing elastomer that is used as a protective coating, encapsulating, and potting electrical applications such as LED lighting, power supplies, transformers, sensors, amplifiers, and connectors. It provides flowability, self priming, low viscosity, flame resistance, and good dielectric properties. Part B, 20.4 kg Pail.
| Typical Use: | Low cost primerless adhesion; encapsulation, protection of electrical/electronic devices. |
| Brand: | SYLGARD |
| Color: | Black |
| Components: | 2 part |
| Cure System: | Heat |
| Cure Time: | 15min @ 150 °C; 60min @ 125 °C; 120min @ 100 °C |
| Dielectric Strength: | 21 kV/mm |
| Flash Point: | 115.5 °C |
| Hardness: | 42 A |
| Key Specifications: | MIL-PRF-23586F (Grade B2), Type I, Class IV, QPL, UL 94 V-0 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distribut |
| Mix Ratio: | 1:1 |
| Shear Strength: | 140 |
| Specific Gravity: | 1.24 |
| Thermal Conductivity: | 0.3 W/mK |
| Viscosity: | 1,540 |
| Volume Resistivity: | 2.1 x 10^15 ohm-cm |
| Working Time: | >3d @ room temperature |
-
