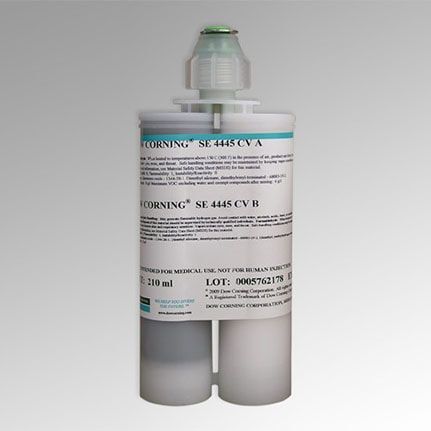

Dow SE 4445 CV Thermally Conductive Gel Gray 210 mL Cartridge

Part number: SE 4445 CV KIT 210ML Manufacturer SKU: 4025973
Dow SE 4445 CV Thermally Conductive Gel Gray 210 mL Cartridge

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

Dow SE 4445 CV Thermally Conductive Gel Gray is a two component, heat curing gel that is used for potting electronic modules, base material for thermally conductive gel sheet, and gap fill material between heat sinks and electronic heat sinks. It offers low viscosity, wide service temperature range, and cures to low modulus materials. 1:1 mix ratio. 210 mL Cartridge.

<p>Dow SE 4445 CV Thermally Conductive Gel Gray is a two component, heat curing gel that is used for potting electronic modules, base material for thermally conductive gel sheet, and gap fill material between heat sinks and electronic heat sinks. It offers low viscosity, wide service temperature range, and cures to low modulus materials. 1:1 mix ratio. 210 mL Cartridge.</p>
Typical Use: Use as a gap fill or potting material between electronic heat sources and heat sinks.
Color: Gray
Components: 2 part
Cure Time: 45min @ 125 °C
Dielectric Strength: 127 V/mil
Specific Gravity: Mixed: 2.36
Thermal Conductivity: 1.26 W/mK
Viscosity: Mixed: 14,000
Volume Resistivity: 7e + 15 ohm-cm
Working Time: 5h @ room temperature
