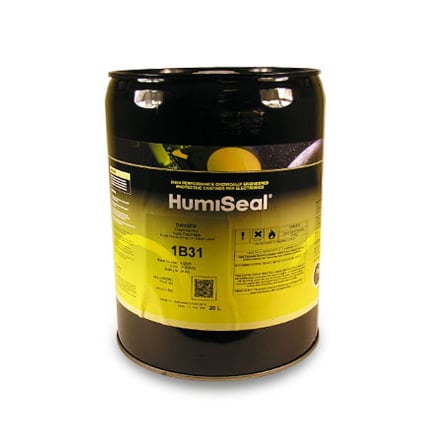

HumiSeal 1B31 Acrylic Conformal Coating Clear 20 L Pail

Part number: 1B31 20 LITER PAIL Manufacturer SKU: 51536
HumiSeal 1B31 Acrylic Conformal Coating Clear 20 L Pail

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

HumiSeal® 1B31 Acrylic Conformal Coating is a one component, fast curing acrylic coating that is used for circuit assemblies and can be easily repaired. It offers excellent flexibility, moisture and environmental protection, and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. 20 L Pail.

<p>HumiSeal® 1B31 Acrylic Conformal Coating is a one component, fast curing acrylic coating that is used for circuit assemblies and can be easily repaired. It offers excellent flexibility, moisture and environmental protection, and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. 20 L Pail.</p>
Typical Use: A conformal coating for printed circuit assemblies, fluoresces under UV light for ease of inspection. The final film demonstrates excellent flexibility and is easily repairable.
Chemical Composition: Acrylic
Color: Clear
Components: 1 part
Cure System: Room Temperature/Heat
Cure Time: 24h @ room temperature; 30min @ 76 °C
Flash Point: -1 °C
Key Specifications: Mil-I-46058C IPC-CC-830 RoHS Directive 2002/95/EC If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply.
Service Temperature: 18 to 32 °C
Specific Gravity: 0.88
Tack Free Time: 10min
Viscosity: 200 ± 15
