Part number: 1B31EPA 5 LITER
Manufacturer SKU: 51435
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

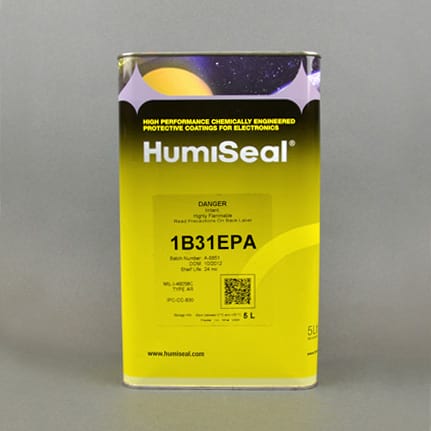

HumiSeal® 1B31EPA Acrylic Conformal Coating is a one component, fast curing acrylic coating that is used for circuit assemblies and can be easily repaired. It offers flexibility, moisture and environmental protection, and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. 5 L Can.
| Typical Use: | A conformal coating for printed circuit assemblies, fluoresces under UV light for ease of inspection. The final film demonstrates excellent flexibility and is easily repairable. |
| Chemical Composition: | Acrylic |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ room temperature; 30min @ 76 °C |
| Flash Point: | 12 °C |
| Key Specifications: | HumiSeal 1B31EPA™ coating is MIL-I-46058C qualified, IPC-CC-830, RoHS Directive 2002/95/EC and EPA 33/50 compliant. |
| Service Temperature: | -65 to 125 °C |
| Specific Gravity: | 0.96 |
| Tack Free Time: | 30min |
| Viscosity: | 325 ± 60 |
