Part number: 1B31LOC 20 LITER PAIL
Manufacturer SKU: 51408
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

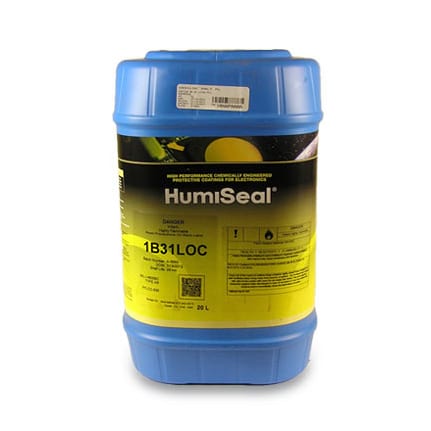

HumiSeal® 1B31LOC Acrylic Conformal Coating is a one component, fast curing, low VOC solvent based coating that is used for circuit assemblies and can be easily repaired. It offers flexibility, moisture and environmental protection, and electrical properties. It fluoresces under UV light to aid inspection and can be applied by spraying, brushing, or dipping methods. 20 L Pail.
| Typical Use: | A conformal coating for printed circuit assemblies, the final film demonstrates excellent flexibility, is easily repairable and retains all of the film properties of the standard 1B31. |
| Chemical Composition: | Acrylic |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ room temperature; 30min @ 76 °C |
| Flash Point: | 22 °C |
| Key Specifications: | Mil-I-46058C IPC-CC-830 RoHS Directive 2002/95/EC If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. |
| Service Temperature: | -65 to 125 °C |
| Specific Gravity: | 1.34 |
| Tack Free Time: | 25min |
| Viscosity: | 450 ± 25 |
