Part number: 1B73 LITER
Manufacturer SKU: 51486
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

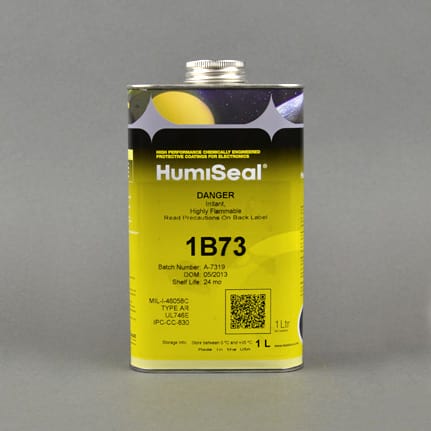

HumiSeal® 1B73 Acrylic Conformal Coating is a one component, fast curing acrylic coating that is used for circuit assemblies and can be easily repaired. It offers excellent flexibility, electrical properties, and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. 1 L Can.
| Typical Use: | A conformal coating for printed circuit assemblies, it has excellent electrical properties and flexibility. |
| Chemical Composition: | Acrylic |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ room temperature; 2h @ 76 °C |
| Flash Point: | -1 °C |
| Key Specifications: | Mil-I-46058C IPC-CC-830 UL E 105698 RoHS Directive 2002/95/EC If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. |
| Specific Gravity: | 0.92 |
| Tack Free Time: | 30min |
| Viscosity: | 250 ± 20 |
