Part number: 1B73EPA 5 LITER
Manufacturer SKU: 51498
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

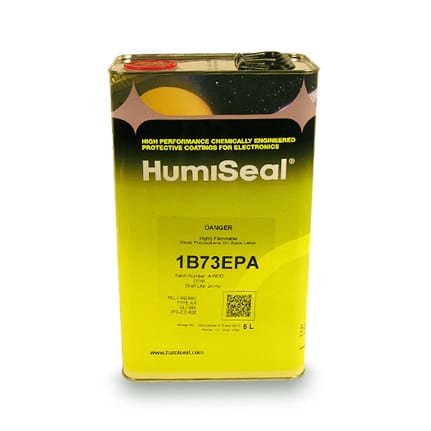

HumiSeal® 1B73EPA Acrylic Conformal Coating is a one component, fast curing acrylic coating that is used for circuit assemblies and can be easily repaired. It demonstrates excellent flexibility and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. 5 L Can.
| Typical Use: | Provides excellent moisture and environmental protection for printed circuit assemblies. The final film demonstrates excellent flexibility and is easily repairable. |
| Chemical Composition: | Acrylic |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ room temperature; 60min @ 76 °C |
| Flash Point: | 12 °C |
| Key Specifications: | MILI-46058C and IPC-CC-830 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. |
| Specific Gravity: | 0.96 |
| Tack Free Time: | 30min |
| Viscosity: | 230 ± 30 |
