Part number: 1B73LOC 5 LITER
Manufacturer SKU: 51411
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

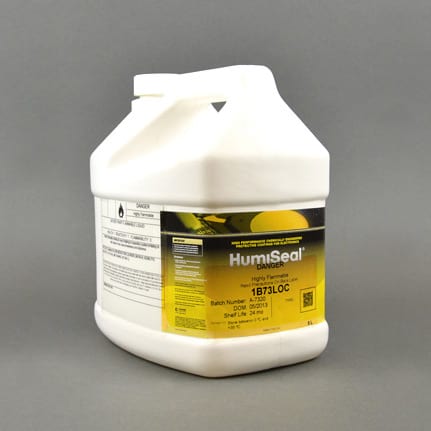

HumiSeal® 1B73LOC Acrylic Conformal Coating is a one component, fast curing, low VOC solvent based coating that is used for circuit assemblies and can be easily repaired. It fluoresces under UV light to aid inspection and can be applied by spraying, brushing, or dipping methods. 5 L Jug.
| Typical Use: | 1B73LOC is a fast air drying, single component, acrylic coating providing excellent moisture and environmental protection for printed circuit assemblies. |
| Chemical Composition: | Acrylic |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ room temperature; 2h @ 76 °C |
| Flash Point: | 22 °C |
| Key Specifications: | HumiSeal 1B73LOC™ coating is MIL-I-46058C qualified, IPC-CC-830 and RoHS Directive 2002/95/EC compliant and recognized under UL File Number E105698. |
| Service Temperature: | 18 to 32 °C |
| Specific Gravity: | 1.23 |
| Tack Free Time: | 25min |
| Viscosity: | 445 ± 30 |
