Part number: 2A53B 5 LITER
Manufacturer SKU: 51542
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

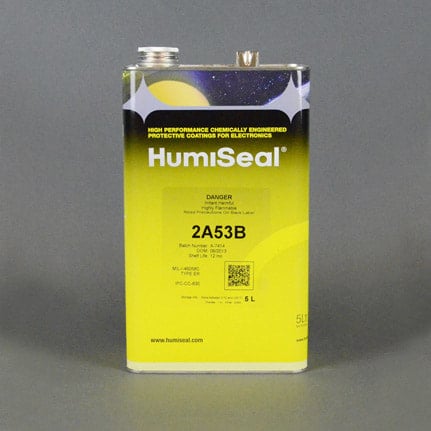

HumiSeal® 2A53B Epoxy Conformal Coating is a two component epoxy system that is used for circuit boards and applications that require resistance to chemicals or solvents. It fluoresces under UV light to aid inspection and can be applied by spraying, brushing, or dipping methods. Part B only, 5 L Jug.
| Typical Use: | Particularly suited for coating printed circuit assemblies and components where exceptional resistance to solvents and/or chemicals is required. |
| Chemical Composition: | Epoxy |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Heat |
| Cure Time: | 2h @ 93 °C |
| Flash Point: | 15 °C |
| Key Specifications: | HumiSeal 2A53™ coating is MIL-I-46058C qualified and IPC-CC-830 and RoHS Directive 2002/95/EC compliant. |
| Mix Ratio: | 1:1 by volume |
| Specific Gravity: | 0.94 |
| Tack Free Time: | 5h |
| Viscosity: | Mixed: 350 ± 150 |
| Working Time: | 24h @ room temperature |
