Part number: 1-2577 LOW VOC CTG 15KG
Manufacturer SKU: 4017645
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

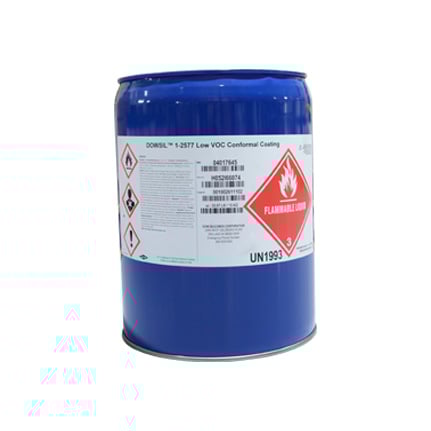

Dow DOWSIL™ 1-2577 Low-VOC Conformal Coating Clear is a one component, low viscosity, silicone resin coating that is used to protect electronic components from stress and abrasions. It is an RTV elastoplastic, solvent based, low odor, cures at room temperature, and has reduced VOC. 15 kg Pail.
| Typical Use: | Protective coating for rigid and flexible circuit boards. A one-part, self priming coating cures to flexible, transparent coating ideally suited for electronic printed wiring board applications. |
| Brand: | DOWSIL |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | RTV/Heat |
| Cure Time: | 60min @ room temperature; 2min @ 60 °C |
| Dielectric Strength: | 350 V/mil |
| Flash Point: | 16.1 °C |
| Hardness: | 25 D |
| Key Specifications: | MIL-I-46058C, Amend. 7 If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor. |
| Service Temperature: | -45 to 200 °C |
| Specific Gravity: | 0.88 @ 25 °C |
| Tack Free Time: | 6min |
| Viscosity: | 1,000 |
| Volume Resistivity: | 1.9 x 10^14 ohm-cm |
-
-
