Part number: 1A20 LITER
Manufacturer SKU: 51371
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

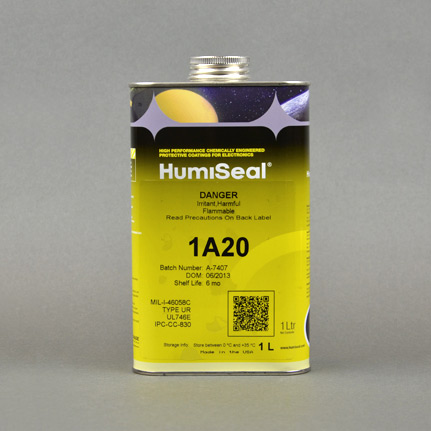

HumiSeal® 1A20 Urethane Conformal Coating is a one component, fast curing polyurethane coating that fluoresces under UV light to aid inspection and is chemically resistant. It can be applied by spraying, brushing, or dipping methods. 1 L Can.
| Typical Use: | A conformal coating for printed circuit assemblies that may be applied by dipping, spraying or brushing. Contains fluorescent tracer to aid inspection under ultraviolet light. |
| Chemical Composition: | Polyurethane |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ room temperature; 3h @ 76 °C |
| Flash Point: | 28 °C |
| Key Specifications: | Mil-I-46058C IPC-CC-830 UL File No. E105698 RoHS Directive 2002/95/EC If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. |
| Specific Gravity: | 1.01 |
| Tack Free Time: | 60min |
| Viscosity: | 100 ± 30 |
