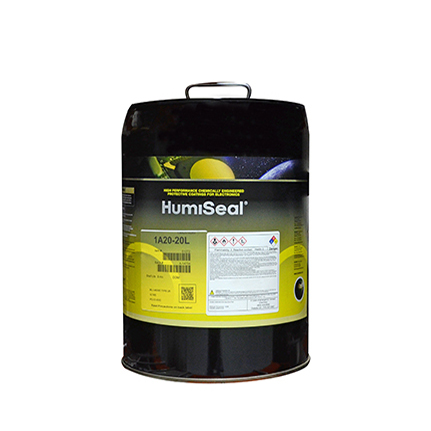

HumiSeal® 1A20 Urethane Conformal Coating is a one component, fast curing polyurethane coating that fluoresces under UV light to aid inspection and is chemically resistant. It can be applied by spraying, brushing, or dipping methods. 20 L Pail.
Typical Use: | A conformal coating for printed circuit assemblies that may be applied by dipping, spraying or brushing. Contains fluorescent tracer to aid inspection under ultraviolet light. |
Chemical Composition: | Polyurethane |
Color: | Clear |
Components: | 1 part |
Cure System: | Room Temperature/Heat |
Cure Time: | 24h @ room temperature; 3h @ 76 °C |
Flash Point: | 28 °C |
Key Specifications: | Mil-I-46058C IPC-CC-830 UL File No. E105698 RoHS Directive 2002/95/EC.Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant |
Specific Gravity: | 1.01 |
Tack Free Time: | 60min |
Viscosity: | 100 ± 30 |
