Part number: 1A33 LITER
Manufacturer SKU: 51383
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

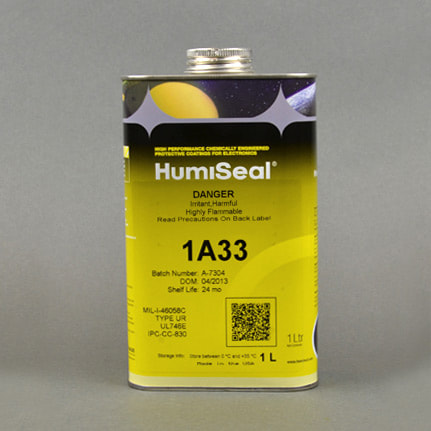

HumiSeal® 1A33 Urethane Conformal Coating is a one component, polyurethane coating that is used for circuit board applications. It contains no free isocyanates and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. 1 L Can.
| Typical Use: | Well suited for general printed circuit board applications. |
| Chemical Composition: | Polyurethane |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 30d @ room temperature; 30h @ 76 °C; 20h @ 88 °C |
| Flash Point: | -1 °C |
| Key Specifications: | Mil-I-46058C IPC-CC-830 UL File No. E105698 RoHS Directive 2002/95/EC If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. |
| Specific Gravity: | 0.95 |
| Tack Free Time: | 15min |
| Viscosity: | 200 ± 30 |
