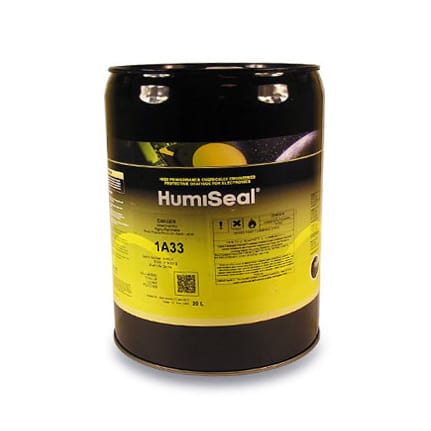

Part number: 1A33 20 LITER PAIL
Manufacturer SKU: 51384
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.
HumiSeal® 1A33 Urethane Conformal Coating is a one component, polyurethane coating that is used for print board applications. It contains no free isocyanates and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. 20 L Pail.
| Typical Use: | Well suited for general printed circuit board applications. |
| Chemical Composition: | Polyurethane |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 30d @ room temperature; 30h @ 76 °C; 20h @ 88 °C |
| Flash Point: | -1 °C |
| Key Specifications: | HumiSeal® 1A33 coating is MIL-I-46058C qualified, IPC-CC-830 and RoHS Directive 2002/95/EC compliant and recognized under UL File Number E105698. |
| Specific Gravity: | 0.95 |
| Tack Free Time: | 15min |
| Viscosity: | 200 ± 30 |
-
-
-
-
-
