Part number: 2A64A 5 LITER
Manufacturer SKU: 51398
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

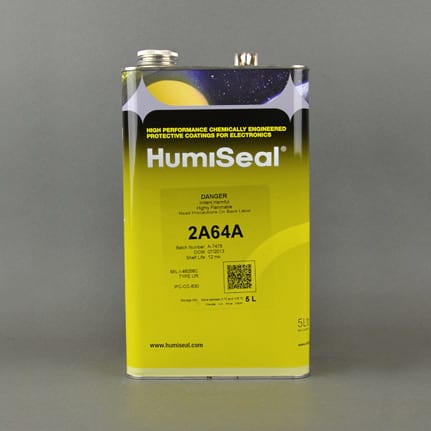

HumiSeal® 2A64A Polyurethane Conformal Coating is a two component, low viscosity polyurethane coating that is used for circuit board applications. It offers high solids, easy applications, and fluoresces under UV light to aid inspection. It can be applied by spraying, brushing, or dipping methods. Part A only, 5 L Can.
| Typical Use: | Characterized by high solids and low viscosity, it offers easy application processing. Contains fluorescent tracer for inspection purposes. |
| Chemical Composition: | Polyurethane |
| Color: | Clear |
| Components: | 2 part |
| Cure System: | Heat |
| Cure Time: | 3h @ 76 °C |
| Flash Point: | -4 °C |
| Key Specifications: | Mil-I-46058C IPC-CC-830 RoHS Directive 2002/95/EC If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. |
| Mix Ratio: | 1:1 by volume |
| Service Temperature: | -65 to 125 °C |
| Specific Gravity: | 1.03 |
| Tack Free Time: | 15min |
| Viscosity: | Mixed: 130 ± 50 |
| Working Time: | 8h @ room temperature |
-
Part #: 2A64B 5 LITER -
-
-
-
