Part number: 3-1965 CONFORM CTG 3.6KG
Manufacturer SKU: 4007474
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

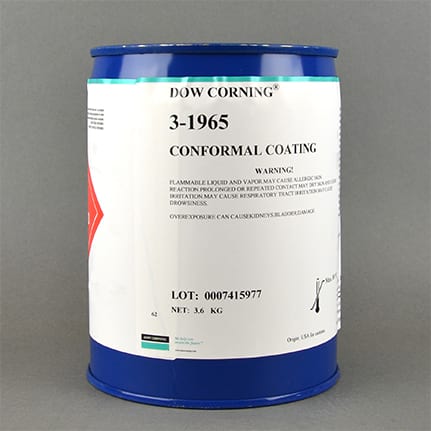

Dow DOWSIL™ 3-1965 Conformal Coating Clear is a one component, low viscosity solvent free coating that is used for print wire boards, circuit boards, and other sensitive electronic components. It cures at room temperature, offers stress relief, and is environmentally friendly. 3.6 kg Pail.
| Typical Use: | Protective coating for rigid and flexible circuit boards. These fast curing, one-part, self-priming coatings cure to flexible, transparent elastomers ideally suited for electronic printed wiring board (PWB) applications. |
| Brand: | DOWSIL |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | RTV/Heat |
| Cure Time: | 30min @ room temperature; 2min @ 60 °C |
| Dielectric Strength: | 450 V/mil |
| Hardness: | 29 A |
| Key Specifications: | MIL-I-46058C If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor. |
| Service Temperature: | -45 to 200 °C |
| Specific Gravity: | 0.99 |
| Tack Free Time: | 7min |
| Viscosity: | 125 |
| Volume Resistivity: | 5.7e + 14 ohm-cm |
-
-
