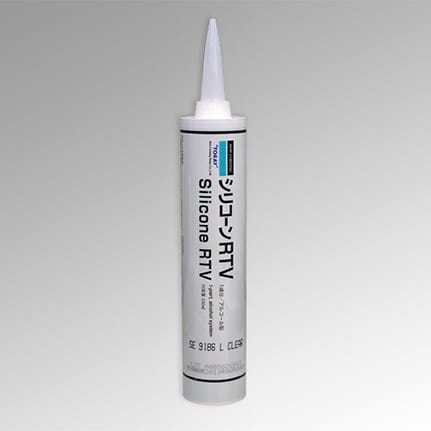

Dow DOWSIL™ SE 9186 L Silicone Conformal Coating Clear 330 mL Cartridge

Part number: SE 9186 L CLEAR 330ML Manufacturer SKU: 2565129
Dow DOWSIL™ SE 9186 L Silicone Conformal Coating Clear 330 mL Cartridge

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

 Description

Dow DOWSIL™ SE 9186L Coating Clear is a one component, room temperature curing, solvent free, elastomeric conformal coating that is used for high tolerance devices, spot protection, connectors, sensors, flexible and rigid circuit board applications. It is flowable, tack free, low stress, and has a controlled silicone volatility. 330 mL Cartridge.

<p>Dow DOWSIL™ SE 9186L Coating Clear is a one component, room temperature curing, solvent free, elastomeric conformal coating that is used for high tolerance devices, spot protection, connectors, sensors, flexible and rigid circuit board applications. It is flowable, tack free, low stress, and has a controlled silicone volatility. 330 mL Cartridge.</p>

Typical Use: Parts fixing on circuit board; LCD module assembly.
Brand: DOWSIL
Color: Clear
Components: 1 part
Cure System: RTV
Cure Time: 48h @ room temperature
Dielectric Strength: 575 V/mil
Elongation: 555%
Flash Point: 79 °C
Hardness: 25 A
Shear Strength: 140
Specific Gravity: 1.02
Tack Free Time: 8min
Tensile Strength: 215 psi
Viscosity: 26,600
Volume Resistivity: 6.0e + 15 ohm-cm
