Part number: 2102-12S
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

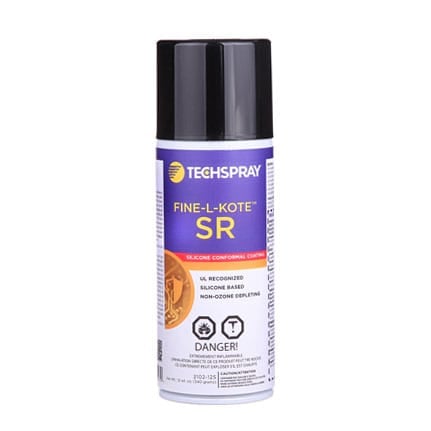

Techspray Fine-L-Kote SR is a standard, silicone conformal coating that is used for thermal, moisture, and vibration protection. It is non-ozone depleting, UL recognized, and fluoresces under UV light to aid inspection. 12 oz Aerosol.
| Typical Use: | Material flexibility allows for vibration, movement, and rapid changes in temperature. Contains Opti/Scan to allow for black light inspection. Coated boards can be reworked by applying soldering iron directly to coating. |
| Chemical Composition: | Silicone |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | Room Temperature |
| Cure Time: | 72h |
| Dielectric Strength: | 1,100 V/mil |
| Flash Point: | -12.2 °C |
| Key Specifications: | UL File Number E95150 |
| Service Temperature: | Up to 200 °C |
| Specific Gravity: | 0.83 |
| Tack Free Time: | 60min |
