Part number: 1B51 5 LITER
Manufacturer SKU: 51516
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

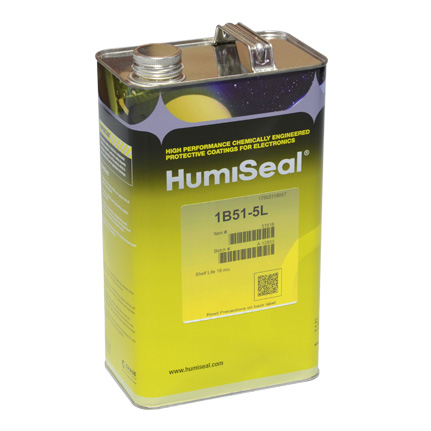

HumiSeal® 1B51 Synthetic Rubber Conformal Coating is a one component, fast curing synthetic rubber coating that is used for circuit assemblies and can be easily repaired. It offers low moisture vapor permeability, flexibility, low stress on components, unique base polymer, moisture and environmental protection. It can be applied by spraying, brushing, or dipping methods. 5 L Jug.
| Typical Use: | Provides excellent moisture and environmental protection for printed circuit assemblies. |
| Chemical Composition: | Synthetic rubber |
| Components: | 1 part |
| Cure System: | Room Temperature/Heat |
| Cure Time: | 24h @ room temperature; 30min @ 76 °C |
| Flash Point: | 4 °C |
| Key Specifications: | HumiSeal 1B51™ is in full compliance with the RoHS Directive 2002/95/EC. |
| Specific Gravity: | 0.89 |
| Tack Free Time: | 10min |
| Viscosity: | 185 ± 30 |
-
-
-
-
Part #: 1B51NSLU 5 LITER
