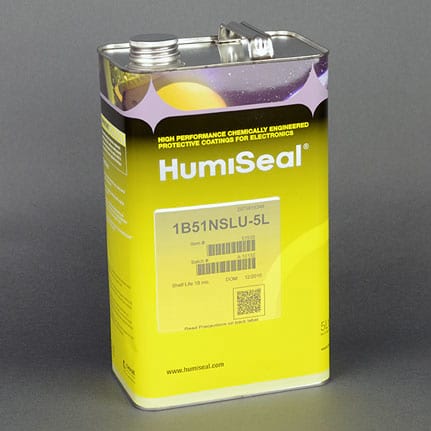

HumiSeal 1B51NS LU Synthetic Rubber Conformal Coating 5 L Can

Part number: 1B51NSLU 5 LITER Manufacturer SKU: 51530
HumiSeal 1B51NS LU Synthetic Rubber Conformal Coating 5 L Can

Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

Call Us

Call Us
Contact customer service at 888-458-0554.

Email Us

Email Us
Email our quotes team.

HumiSeal® 1B51NS LU Synthetic Rubber Conformal Coating is a one component, air drying synthetic rubber coating that offers low moisture vapor permeability, flexibility, and low stress on components. It contains a methylcyclohexane solvent which is more environmentally friendly than most standard solvents. It can be applied by spraying, brushing, or dipping methods. 5 L Can.

<p>HumiSeal® 1B51NS LU Synthetic Rubber Conformal Coating is a one component, air drying synthetic rubber coating that offers low moisture vapor permeability, flexibility, and low stress on components. It contains a methylcyclohexane solvent which is more environmentally friendly than most standard solvents. It can be applied by spraying, brushing, or dipping methods. 5 L Can.</p>
Typical Use: Provides excellent moisture and environmental protection for printed circuit assemblies.
Chemical Composition: Synthetic rubber
Components: 1 part
Cure System: Room Temperature/Heat
Cure Time: 24h @ room temperature; 30min @ 76 °C
Flash Point: -1 °C
Key Specifications: HumiSeal 1B51NS™ is in full compliance with the RoHS Directive 2002/95/EC.
Specific Gravity: 0.804
Tack Free Time: 10min
Viscosity: 185 ± 30
