Part number: 9-20557 1 LITER BOTTLE
Manufacturer SKU: 9-20557/LTRCYL
Please contact your Ellsworth Customer Service Representative to confirm availability and delivery time.

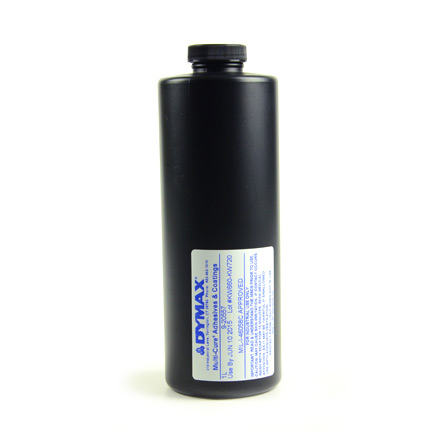

DYMAX Multi-Cure 9-20557 Conformal Coating is a one component, UV light and heat curing, acrylated urethane that is used for coating electronic devices and print circuit boards. It offers flexibility, solvent free, low elastic modulus, and resistance to thermal shock. 1 L Pail.
| Typical Use: | Used for potting, encapsulating, sealing and bonding, can be used when adhesion to solder masks is required. |
| Brand: | Multi-Cure |
| Chemical Composition: | Urethane acrylate |
| Color: | Clear |
| Components: | 1 part |
| Cure System: | UV |
| Cure Time: | Actual cure time typically is 3 to 5 times fixture time. |
| Elongation: | 110% @ break |
| Flash Point: | 101 °C |
| Hardness: | 60 D |
| Key Specifications: | Mil-I-46058-C, Type UR, UL 746C, IPC-CC-830-A If you require manufacturer certification to a certain spec, please request a quote as additional fees may apply. Ellsworth Adhesives is an ISO-9001 registered and AS9120 compliant distributor. |
| Service Temperature: | -54 to 150 °C |
| Tensile Strength: | 1,500 psi @ break |
| Viscosity: | 2,300 |
| Volume Resistivity: | 1.48 x 10^15 ohm-cm |
-
